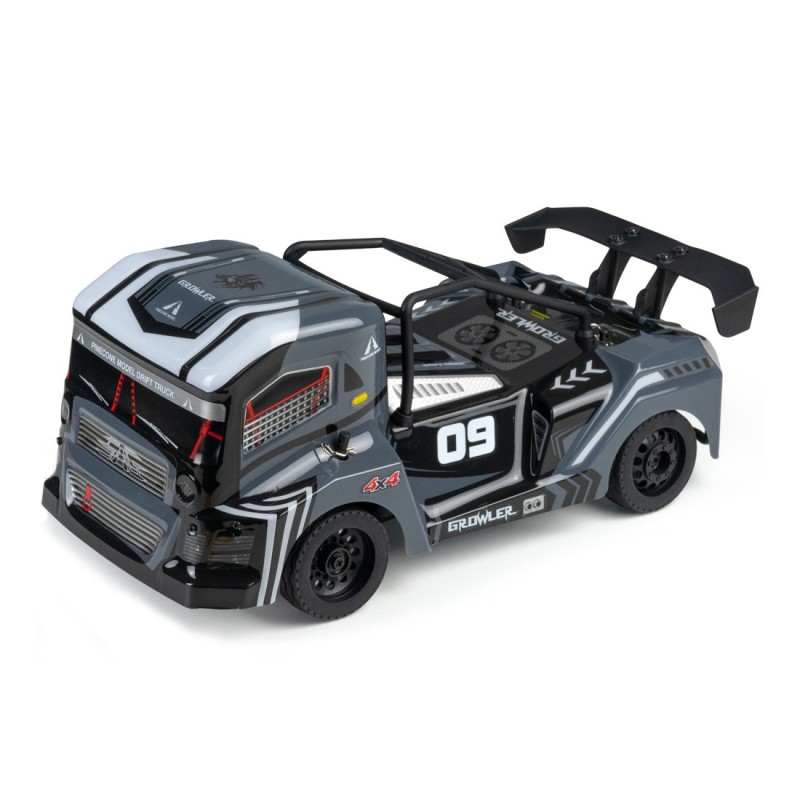

PINECONE Model SG 1609 1/16 Drift RC Truck

PINECONE MODEL SG 1609 4WD Drift RC Truck

Basic Information

• Brand: PINECONE MODEL
• Model: SG 1609
• Scale: 1/16
• Product Name: Electric 4WD On-Road Drift Car (Truck head)
• Top Speed: 35km/h

Power System of PINECONE MODEL SG 1609 RC Truck

• Motor: RC380 High-Speed Bearing Brushed Motor (Magnetic Protection + Heat Sink)
• ESC/Receiver: Integrated ESC/Receiver (Splashproof)
• Steering Servo: 5-wire, 17g

Battery & Charging

• Car Battery: 7.4V 1300mAh Li-ion Battery (T-Plug)
• Remote Battery: 3 × AA Batteries (Not Included)
• Charging Method: USB Charger
• Charging Time: 3-3.5 hours (USB Balance Charger)
• Operating Time: 15-18 minutes (Full-Speed Continuous Running)

Dimensions & Weight of PINECONE MODEL SG 1609 RC Truck

• Car Size: 32 × 15.5 × 13 cm
• Car Weight: 800g
• Remote Weight: 170g

Remote Control System

• Frequency: 2.4GHz (Supports Multiple Cars Racing Together)
• Control Range: ≥80m
• Control Type: Full-Proportional Synchronous System (Pistol Grip)

Chassis & Suspension of PINECONE MODEL SG 1609 RC Truck

• Wheelbase: 180mm
• Wheel Track: 127mm
• Wheel Diameter: 50mm
• Drive System: 4WD with Vertical Spring Shock Absorbers and Double Wishbone Independent Suspension
• Front Driveshaft: Universal Cross-Joint Driveshaft
• Rear Driveshaft: Split-Type Dog Bone Driveshaft
• Differential: Front and Rear Nylon Gear Planetary Differential

Features & Configuration

1. Realistic Structure Design: Provides a true-to-life driving experience with full-proportional speed control, high-speed running, acceleration, braking, reversing, left/right turning, and drifting.
2. Suitable Surfaces: Can be driven on flat roads, concrete roads, asphalt, and race tracks.
3. Lighting System: White headlights, blue fog lights.
4. 4WD System: Front and rear independent suspension with vertical shock absorbers.
5. 2.4G Full-Proportional Control: Fully proportional throttle and steering.
6. Water-Resistant Electronics: 2.4G Splashproof 30A Integrated ESC/Receiver.
7. Metal Components: Metal chassis deck, metal front and rear arm mounts, metal central driveshaft.
8. Durable Car Shell: High-toughness explosion-proof PVC body shell.
9. Tire Options: Comes with realistic racing tires for strong grip, plus an extra set of 4 drift wheels for ultimate drifting fun (stock setup with on-road tires).
10. Ball Bearings: Equipped with 16 high-speed ball bearings for smooth performance.
11. High-Performance Battery: 7.4V 1300mAh Li-ion battery with 10C discharge rate (T-Plug).
12. Headlights: White+Blue

Protection Features

1. Charging Protection – Prevents overcharging.
2. Stall Protection – Prevents motor damage due to jamming.
3. Overheat Protection – Shuts down when temperatures exceed safe limits.
4. Low Voltage Protection – Automatically stops operation when battery voltage is too low.

Packing List of PINECONE MODEL SG 1609 RC Truck

• 1x RC Car;
• 1x Remote control;
• 1x Product instructions in English;
• 1x Lithium battery;
• 1x USB charger;
• 4x Drift wheel;
• 3x Damping adjusting snap ring;
• 4x Metal latch;
• 1x Small cross screwdriver.
